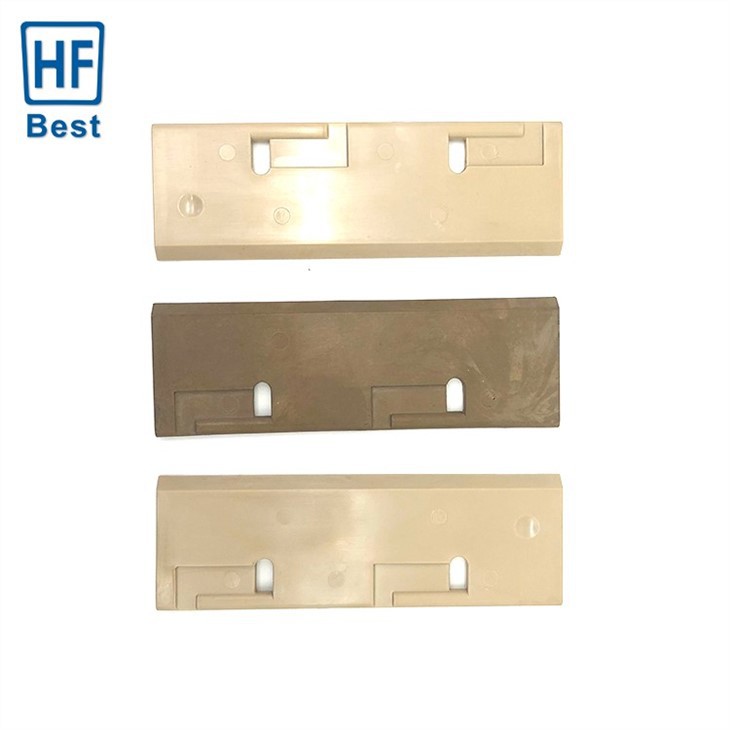

PEEK Plate

PEEK, which stands for polyetheretherketone, is a high-performance thermoplastic polymer that has become increasingly popular in various engineering applications. At our company, we pride ourselves on providing high-quality PEEK plates that are suitable for a range of industrial and commercial uses.

Our PEEK plates are manufactured using state-of-the-art technology and strict quality control measures, ensuring that each plate meets the highest standards of performance and durability. Here are some of the key features and benefits of our PEEK plates that we're proud to introduce to merchants around the world.

High Temperature Resistance

One of the most impressive properties of PEEK is its exceptional resistance to high temperatures. Our PEEK plates can withstand temperatures of up to 260°C (500°F) without exhibiting any significant degradation or loss of mechanical properties. This makes PEEK an ideal material for high-temperature applications in industries such as aerospace, automotive, and oil and gas.

Chemical Resistance

In addition to its high temperature resistance, PEEK is also highly resistant to a wide range of chemicals, including acids, bases, and solvents. This makes it an excellent choice for use in chemical processing equipment that requires resistance to aggressive chemicals.

Mechanical Strength

PEEK has superior mechanical strength compared to other thermoplastics, making it an excellent material for components that require high strength and stiffness. Our PEEK plates have a tensile strength of up to 100 MPa and a compressive strength of up to 200 MPa, ensuring excellent structural integrity and resistance to deformation.

Dimensional Stability

PEEK has excellent dimensional stability, which means that it maintains its shape and size even under extreme conditions. This makes PEEK plates ideal for use in applications that require tight tolerances and precision engineering.

Low Moisture Absorption

Unlike many other thermoplastics, PEEK has very low moisture absorption, which means it resists the effects of moisture, such as swelling or degrading. This is important for components that are exposed to environmental factors, such as humidity or water.

Biocompatibility

PEEK is compatible with human tissues and is therefore used in medical and dental implants. Our PEEK plates are also ideal for use in food processing equipment as they are FDA approved for food contact.

Versatility

PEEK is a highly versatile material that can be easily machined, cut, and formed into various shapes and sizes depending on the application. Our PEEK plates come in a variety of thicknesses and sizes, making them suitable for use in a wide range of industries and applications.

In conclusion, our PEEK plates are a highly versatile, high-performance material that offers superior strength, chemical resistance, dimensional stability, and thermal capabilities. They are an ideal choice for industrial and commercial applications, including aerospace, automotive, chemical processing, medical and dental, and food processing equipment. At our company, we are committed to providing customers with high-quality PEEK plates that meet the highest standards of performance and durability, and we are confident that you will be satisfied with our products.

The peek valve plate is the most impacted part of the compressor and must meet the following standards:

The design of the peek plate must meet the requirements of the compressor manufacturer;

The peek valve plate material must be precision machining;

Good sealing between peek valve disc and valve seat;

Long-term stable performance is the most important;

Elasticity and recovery of material.

The peek disc is a device that controls the flow of liquid to reduce its pressure or change its flow and direction.Peek plate are often used in compressors.Compressors can be classified as refrigerator compressors, air conditioning compressors, gas compressors, refrigeration compressors. Most compressors are used for refrigeration, only gas compressors are used for special gas compression. The quality and accuracy of peek valve plate directly affect the life and refrigeration effect of the compressor.Our factory can provide injection molding service and CNC machining service, peek plate can be made from PEEK rod through PEEK machining service.

CNG compressor PEEK valve plate is made of PEEK plastic material.The product has nine advantages:

1. High temperature resistance: PEEK is used for a long time at 250℃, and the normal working temperature of the peek CNG plate can reach more than 200℃.

2. High pressure resistance (differential pressure) : the working pressure difference of PEEK machining plate can reach more than 15MPa.

3. High wear resistance: PEEK plate has small density and light weight for the same volume. Under the working condition of reciprocating compressor, the impact force is reduced, the resulting fatigue damage is reduced, and the service life of the PEEK valve plate is prolonged. The service life can reach 6000 hours.

4. PEEK plate with Strong corrosion resistance and

5. Low noise:PEEK valve plate can absorb part of the impact energy to reduce noise.

6. Good sealing and high efficiency: The sealing surface of PEEK CNG plate has self-adjusting function under working temperature, which can automatically complete fine tuning with the shape of contact surface within 24 hours, so that the sealing is better and the compressor can achieve high compression efficiency in a short time.

7. Low energy consumption: With the improvement of sealing, the power consumption of the compressor and the temperature rise are reduced synchronously. Compared with the metal valve plate, the energy consumption of the compressor using PEEK plate can be reduced by 5%-10%.

8. High safety: the peek plate has good toughness and peek plate is not easy to break. Even if the peek valve plate falls into the cylinder after breaking, it will not cause the cylinder damage or generate sparks. The PEEK oxygen index is high, and the PEEK valve plate has higher safety under the compressor condition with flammable gas as medium.

9. Good hydrolysis resistance: PEEK plate is not affected by water and high pressure steam.

Why choose us?

• Our PEEK machining services are known for their consistency and reliability.
• Excellent processing equipment and strict management, effectively ensure the high quality of products and timely delivery, so that our company's products enjoy a good reputation in the domestic and foreign markets for many years.
• At our factory, we pride ourselves on our commitment to quality and customer satisfaction.
• Based on the concept of 'customer first, continuous innovation, integrity development', we constantly pursue to improve product performance and achieve win-win cooperation with partners.
• Our PEEK machining services are trusted by customers worldwide for their quality and reliability.
• Product market research and quality management has always been our company's focus on the elements, we adhere to the selection of high-quality raw materials, production of high-quality PEEK Plate.
• Our PEEK machining services are designed to improve efficiency and reduce costs for our clients.
• With the aim of "customer first and full participation in quality management", we are constantly introducing advanced inspection equipment, training high quality personnel and strengthening quality management.
• Our team of experts is available to answer any questions you may have about our PEEK machining services.
• Our company has been focusing on core products to lead the technological progress, as well as always uphold the concept of "endless creation, service to the sincere".
